X-Craft Hovercraft battery replacement with LiPo

My son bought a X-Craft Hovercraft (http://www.rcmania.com/fastlane-rc-x-craft-hovercraft). It was cheap (end of life) and announced with a “12v power” where a lot of similar products were 9.6v.

Indeed, 12v is really a plus and the hovercraft is pretty fast. Unfortunately, the battery is a good old NiMH rated at… 600 mAh (10 x 1.2v cells, near half aaa in size) ! It last between 8 and 10 minutes for a charging time of around 5 hours. It was difficult to find another one at a reasonable price and the charging time had to be monitored carefully (no auto off).

So, I decided to build two 12v LiPo (11.1v to be exact) with three 18650 cells. I had to change the way the battery could be plugged on the Hovercraft.

I also used a charger I already had for heated gloves, which was able to charge two 12v LiPo at the same time.

The final result : 30 minutes of play time with one battery, 4h to recharge both with an auto stop ability (mandatory for LiPo batteries).

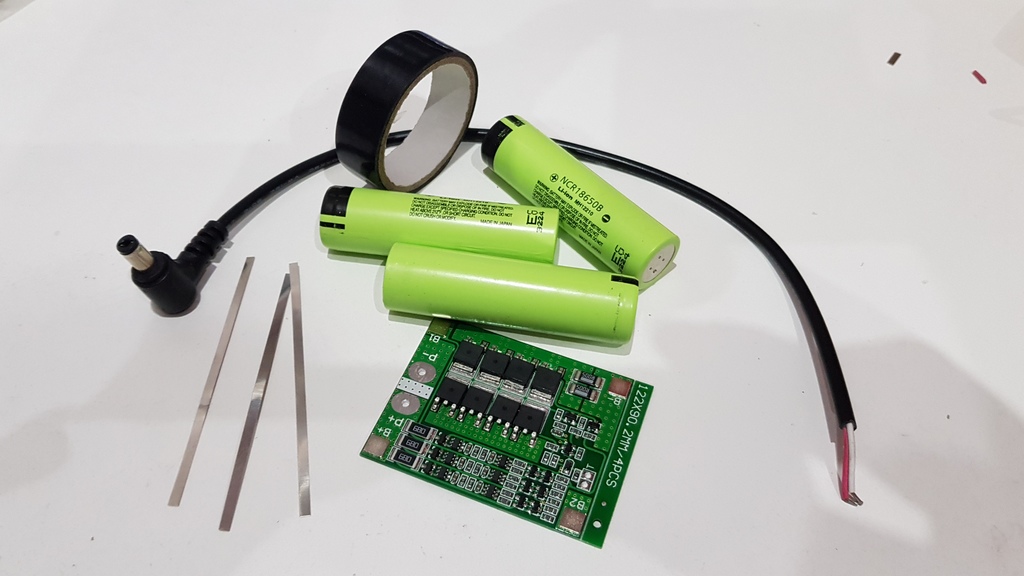

Used materials for each battery:

  • 3 x NCR18650B batteries
  • 1 x 3S LiPo PCB protection board with balance function
  • 1 x 12v round connectors
  • 3 x solder tabs
  • 1 x DC connector (5.5×2.1 mm)
  • Some adhesive tape

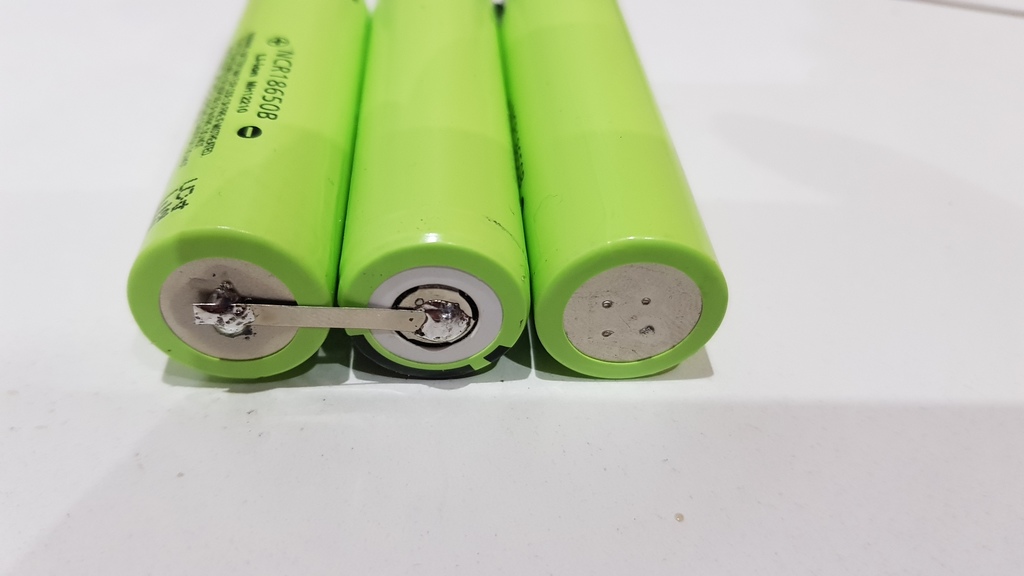

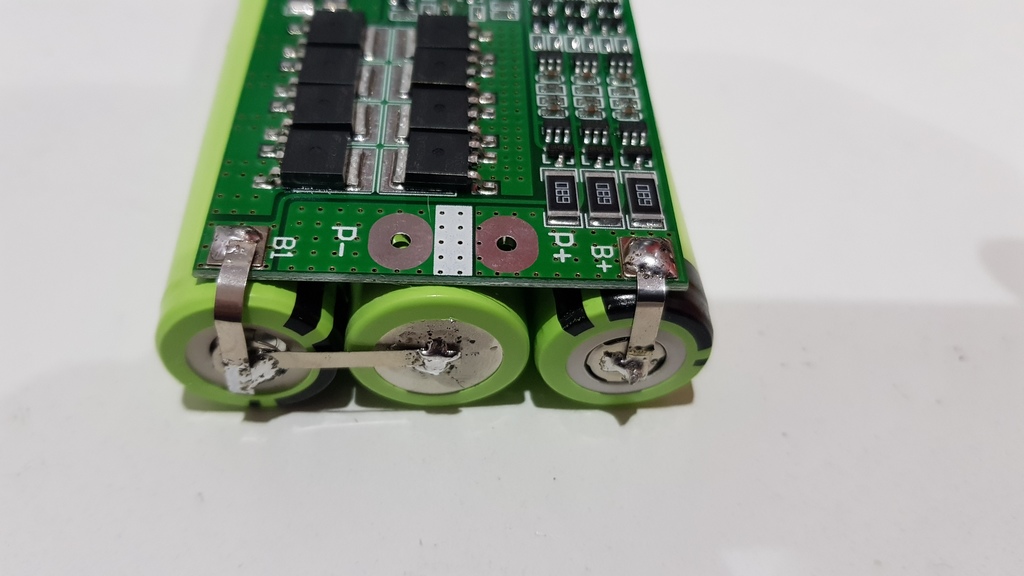

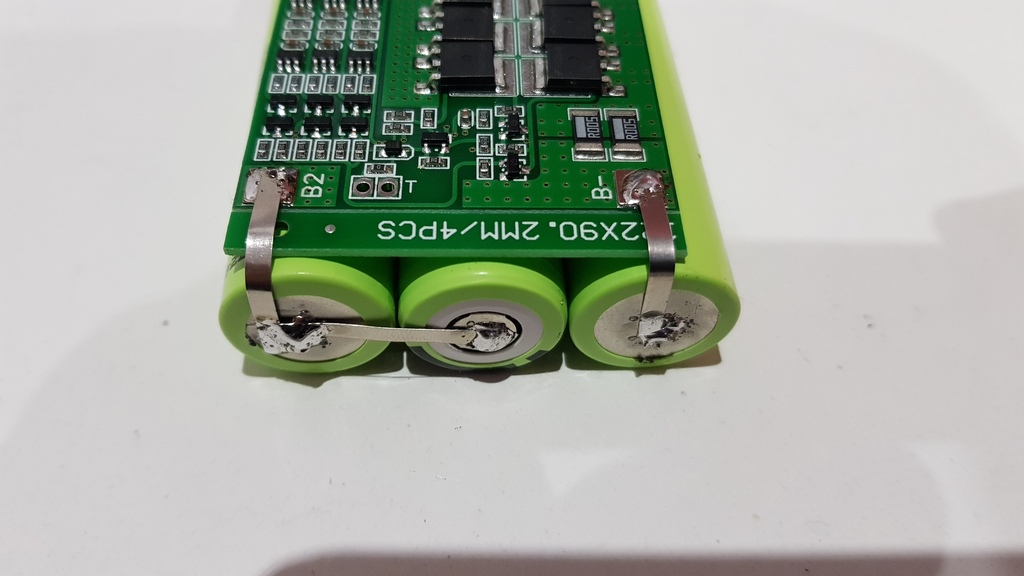

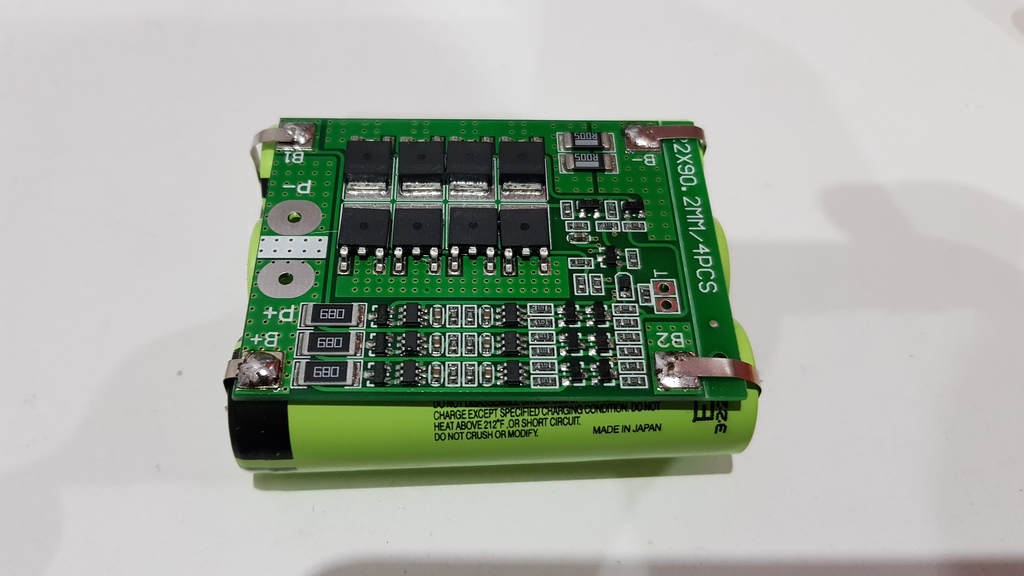

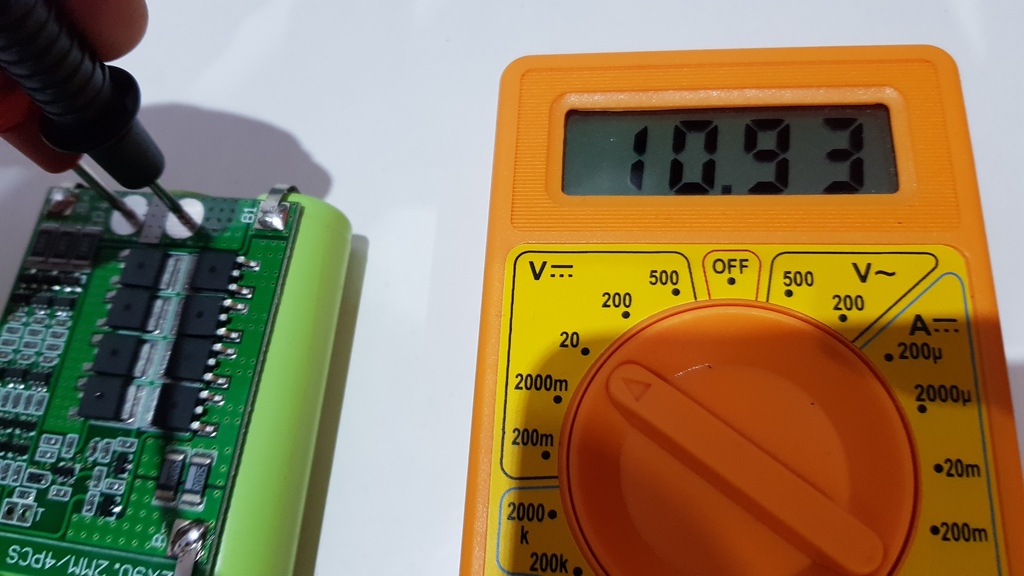

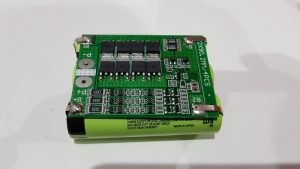

Soldering cells in series and wire the 3S protective board:

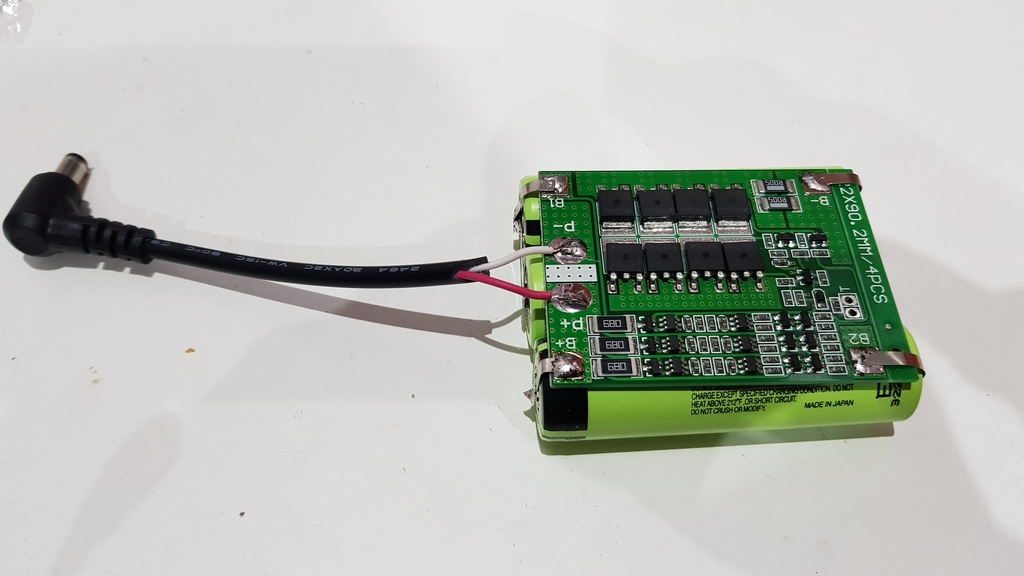

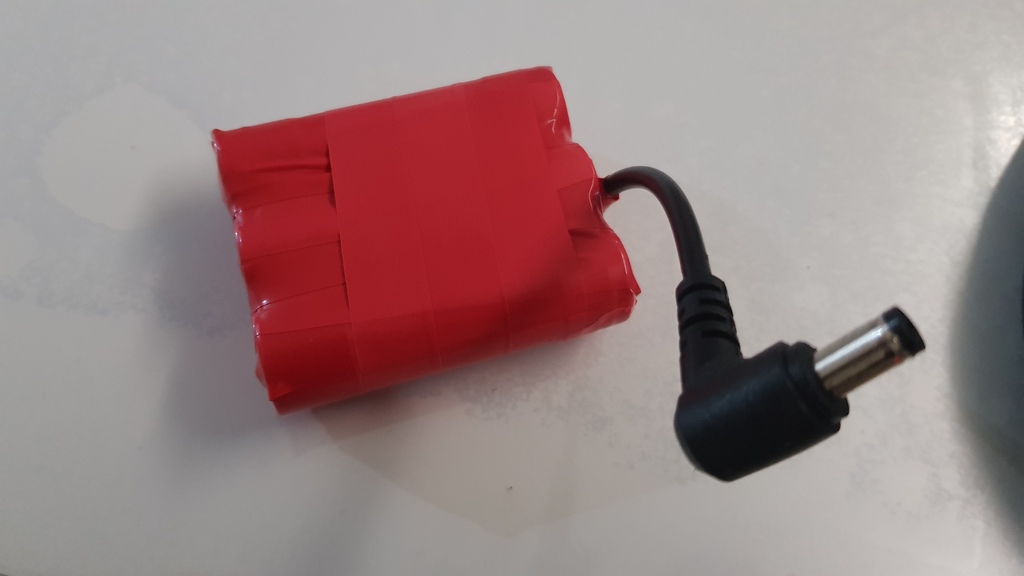

Attaching the DC male connector and finish with the adhesive tape:

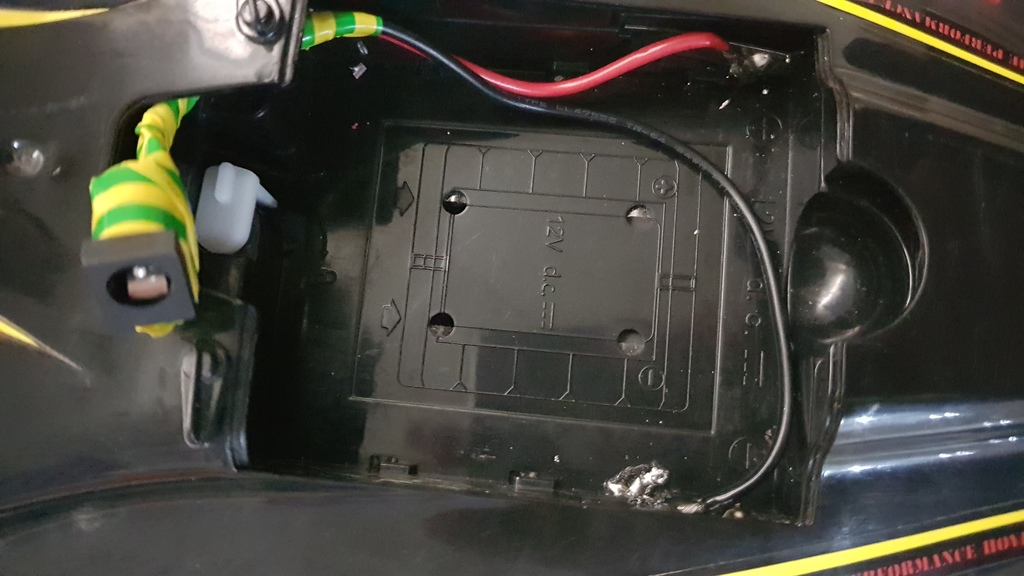

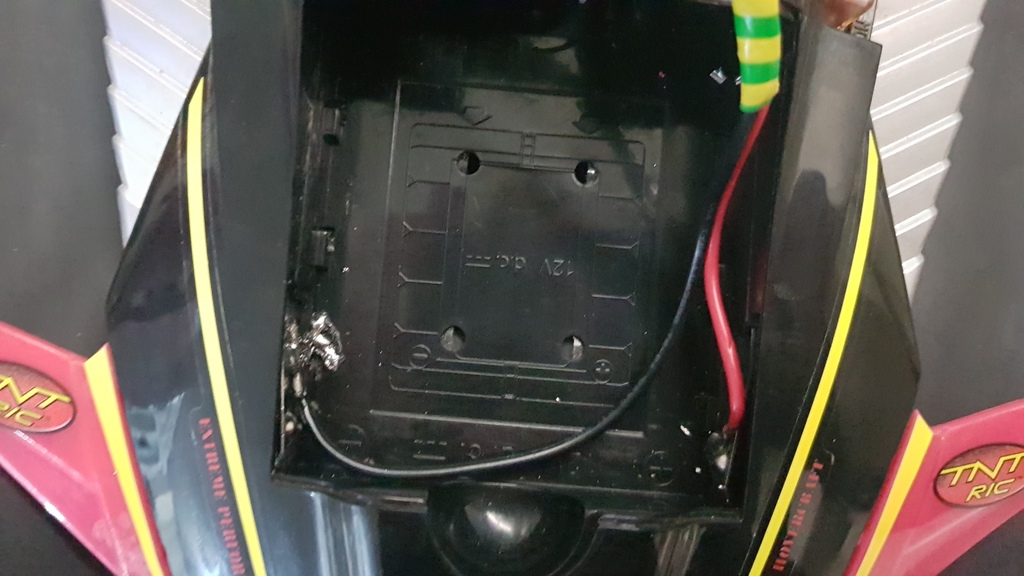

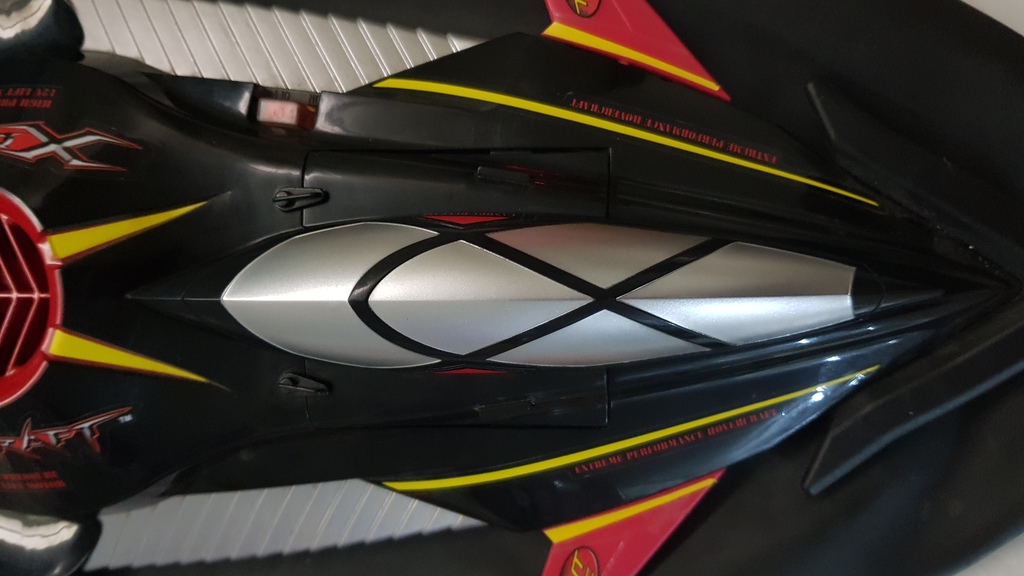

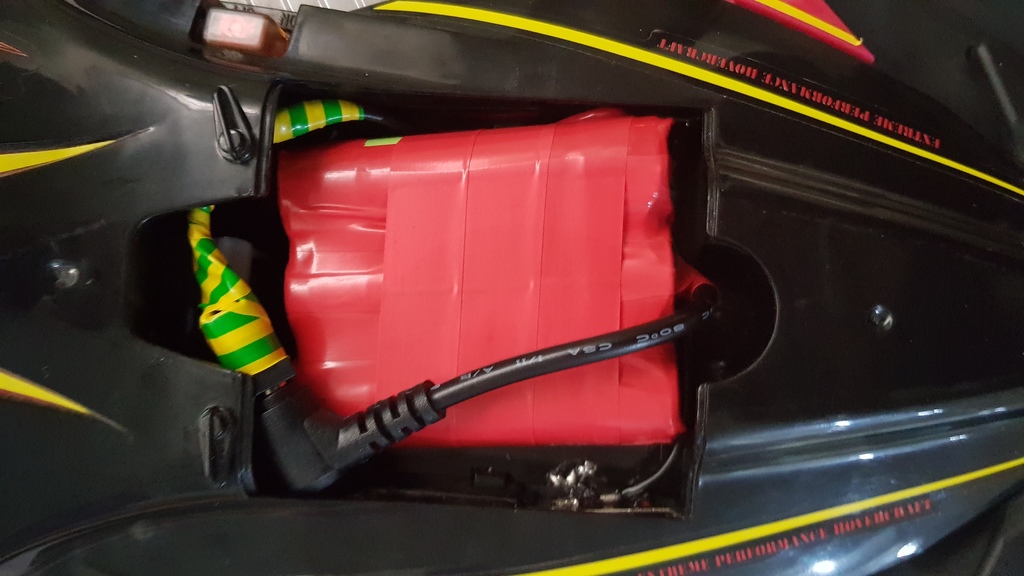

Soldering the female connector to the Hovercraft and plug the battery
